User guide#

Executable options#

The main MOMA executable is available on PATH on all Docker images as moma. The main subcommand for MOMA is mobility which generates mobility maps. Furthermore subcommands exist for generating a synthetic test map and generating a vehicle mobility file from multibody dynamics simulation.

Executable options#
Key	Description	Type [Range]	Default value
--clear	Clear the console before running the script	bool flag	False
mobility	Subcommand for predicting mobility	subcommand	—
generate_test_map	Subcommand for generating synthetic test maps	subcommand	—
generate_vehicle_mobility_file	Subcommand for generating vehicle mobility file with data from DYNO	subcommand	—

Mobility arguments#

The output of the mobility generation is a set of mobility maps that tells the mobility for a giving vehicle in a given travel direction.

The mobility map generation has the following arguments

Executable options#
Key	Description	Type [Range]	Default value
--show_plots	Show popup windows with generated plots (mobility)	bool flag	False
--vehicle	Name of the vehicle to use (vehicle folder name)	str	mock
--site	Name of the site (site folder name)	str	testmap
--n_samples	Number of samples used for uncertainty handling (1 → mean value)	int ≥1	1
--sample_reduction	Sample reduction method (‘mean’ or ‘quantile q’)	list	mean
--path	Path to MOMA data root	str	data/
--path_coordinate_system	Coordinate system for path planner (map or utm). Setting the coordinate system activates path planning	str	None
--path_start	Start waypoint for path planner (x y)	int×2	0 0
--path_end	End waypoint for path planner (x y)	int×2	0 0
--path_folder	Folder with predefined paths for mobility calculations	str	—
--dont_export	Disable exporting plots. Makes the calculation faster at debugging	bool flag	False
--directions	Directions for directional mobility. Accepted inputs: ‘omni’, angle in degrees or abbreviations (‘N’, ‘NNE’, ‘NW’, etc.) Defaults to the eight primary directions if no directions are given in both --directions and --n_directions	list[str]	—
--n_directions	Number of equally spaced directions used together with directions specified by --directions	int ≥0	0
--save_maps	Save generated maps as GeoTIFF	bool flag	False
--hide_utm	Hide UTM axis values in plots	bool flag	False
--minimum_speed	Minimum speed for the mobility calculation	float >0	0.5
--target_speed	Target speed for the mobility calculation	float >0	10.0

Calculation mobility metrics for paths#

MOMA can fill in mobility metrics for specified path. To do this the --path_folder argument is used to specify a folder where the paths are located. Each path is a subfolder with the name path-some_name where some_name is the name of the path. The path folder most contain a json file with coordinates of the path specified in the following structure:

{
    "waypoints": [
        {
            "map": {
                "x": 12.5,
                "y": 97.5
            }
        },
        {
            "map": {
                "x": 17.5,
                "y": 97.5
            }
        },
        {
            "map": {
                "x": 22.5,
                "y": 97.5
            }
        }
    ]
}

The mobility metrics will be added directly to each such file in the specified folder.

Map generation arguments#

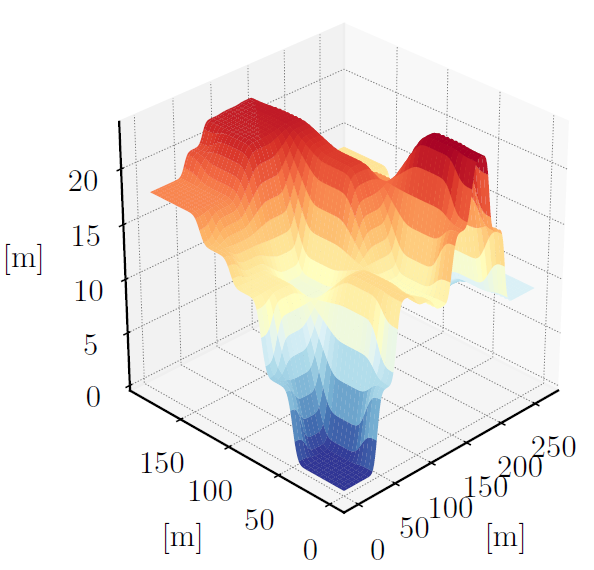

A synthetic testmap can be generated for use in MOMA. It consist of flat plateaus with slopes between them. The map can be padded with flat terrain around it. All distances are in meters. testmap example

Executable options#
Key	Description	Type [Range]	Default value
--N_maps	Number of test maps to generate	int ≥1	1
--elevation_std	Elevation noise standard deviation	float ≥0	0.0
--friction_coefficient	Base friction coefficient	float 0–1	0.5
--friction_coefficient_std	Friction coefficient standard deviation	float ≥0	0.0
--output	Output directory	str	data/sites/testmap
--map_type	Generated map file type (bmp or obj)	str	bmp
--output_resolution	Output resolution multiplier. Resolution = 0.25 m*multiplier	int ≥1	6
--create_rasters	Create MOMA-compatible rasters	bool flag	False
--plot_additional_files	plots slope histogram and rendering of the map	bool flag	False
--seed	Seed for random map generation	int	2
--coordinates_lower_left	UTM Coordinates (easting, northing) of the lower left corner of the map	int×2	0 0
--max_slope_percent	Maximum terrain slope	float %	20.0
--map_dim	Map dimensions (x y)	int×2	200 200
--plateaus	Number of plateaus (x y)	int×2	4 4
--slope_length	Length between plateaus (x y)	int×2	30 30
--resolution	Pixels per meter	int ≥1	4
--start_pad	Flat padding around map	int ≥0	10
--transition_pad	Transition padding between the flat padding and generated map	int ≥0	15

Vehicle mobility file generation arguments#

A vehicle mobility file for use in MOMA can be generated from vehicle simulations done with DYNO. Currently only slope climbing for straight line acceleration on hard surfaces with varying coefficient of friction is supported. The output from DYNO should be placed inside the a subfolder to the vehicle named straight_line_acceleration.

Executable options#
Key	Description	Type [Range]	Default value
–vehicle	Name of the vehicle to generate the mobility file for	str	—
–minimum_speed	Minimum allowed speed in the generated mobility file	float ≥0	0.01
–plot	Plot the data from the generated mobility file	bool flag	False

Adding a New Site#

New sites can be added to MOMA by creating a dedicated directory under sites.

Each site directory must contain a site.yaml file that defines the site configuration.

The site.yaml file includes the following information:

Data source identifier
A keyword specifying which data source or data loader should be used.
Site extent
The west, south, east, and north boundaries of the site, defined as a bounding box in Universal Transverse Mercator (UTM) coordinates.
No-go zones
A list of areas that the vehicle must avoid. No-go zones may be specified as either rectangular regions or circular regions.

Based on this configuration, MOMA automatically creates the required directory structure and loads the relevant data from the specified data source.

Adding a New Data Loader#

If a site lies outside the geographical coverage of the existing data loaders, or if it relies on a different data source, a new data loader must be implemented.

To add a new data loader, create a new class in src/moma/dataloader.py. This class must then be registered in the get_dataloader function, which instantiates the appropriate data loader based on the information provided in the site.yaml file. Additionally a subfolder with the dataloader name must be made in data/dataloaders. This sub folder should contain three files: landuse_mapping.yaml, moisturecontent_mapping.yaml, and soiltype_mapping.yaml. These file contain the mapping from the data input encoded as colors to values that MOMA can use

A data loader should implement functionality to:

retrieve data from the specified data source,
convert the data into the raster format used by MOMA, and
ensure consistent grid resolution and geographical extent across all generated maps.

To improve performance and reduce unnecessary data downloads, data loaders should preferably generate the required raster files once and store them locally for reuse.

Warning

MOMA does not validate grid size or geographical consistency. It is therefore the responsibility of the data loader to ensure that all generated maps are spatially consistent.

Adding a New Vehicle#

A vehicle is defined by its mobility.yaml and landuse_nogo.yaml. The mobility file contains information of maximum steady state vehicle speeds for a set of tests. For a simple slope climbing test the subcommand --generate_vehicle_mobility_file can be used to fill in the mobility file. Here is an example of the start of one such file presented:

- soil:
    type: sideslope
  test:
    type: sideslope
    slope_angle: 0.0
  value: 20.0
- soil:
    type: sideslope
  test:
    type: sideslope
    slope_angle: 20.0
  value: 0.0
- soil:
    type: HT
    friction_coefficient: 0.0
  test:
    type: slope
    slope_angle: 0.0
  value: 14.14
- soil:
    type: HT
    friction_coefficient: 0.1
  test:
    type: slope
    slope_angle: 0.0
  value: 14.83

landuse_nogo.yaml contains information on which landuses the vehicle can safely transverse.
